Mine Ventilation Ducting — Reliable Solutions By Plascorp

When it comes to mine ventilation ducting, it is imperative that the underground ventilation system is of the highest quality to guarantee maximum effectiveness and safety. Without this, your site poses the risk of putting workers in danger. However, with Plascorp, you can rest assured that our mine ventilation solutions are some of the best in Australia.

At Plascorp, our mining products are constructed from polyethylene woven coated fabric or polyester coated PVC. Our manufacturing process incorporates our patented process stitchweld mineflat. This innovation gives vastly reduced air loss by way of top and bottom welded seams. In addition to this, inventory rationalisation can be achieved.

Our stitchweld product has demonstrated a longer lifespan compared to other competitors. By eliminating weldtear and delamination, our unmatched product has quickly become the go-to mine ventilation option and is used in mines all over the world.

Industry Leading Ventilation Ducting

Plascorp can supply you with all your ventilation needs, to install a new ventilation system for underground mining or industrial applications. For the most reliable underground ventilation system possible, make Plascorp your next choice.

In addition to mine ventilation, Plascorp offers a range of highly-effective ducting. From flexible ducting to composite hosing, for over 50 years we have been providing Australia and the rest of the world with top-quality products and materials. For additional information on Plascorp, reach out to our friendly team. Give our head office a call at 1300 30 13 13 or send us an email at .

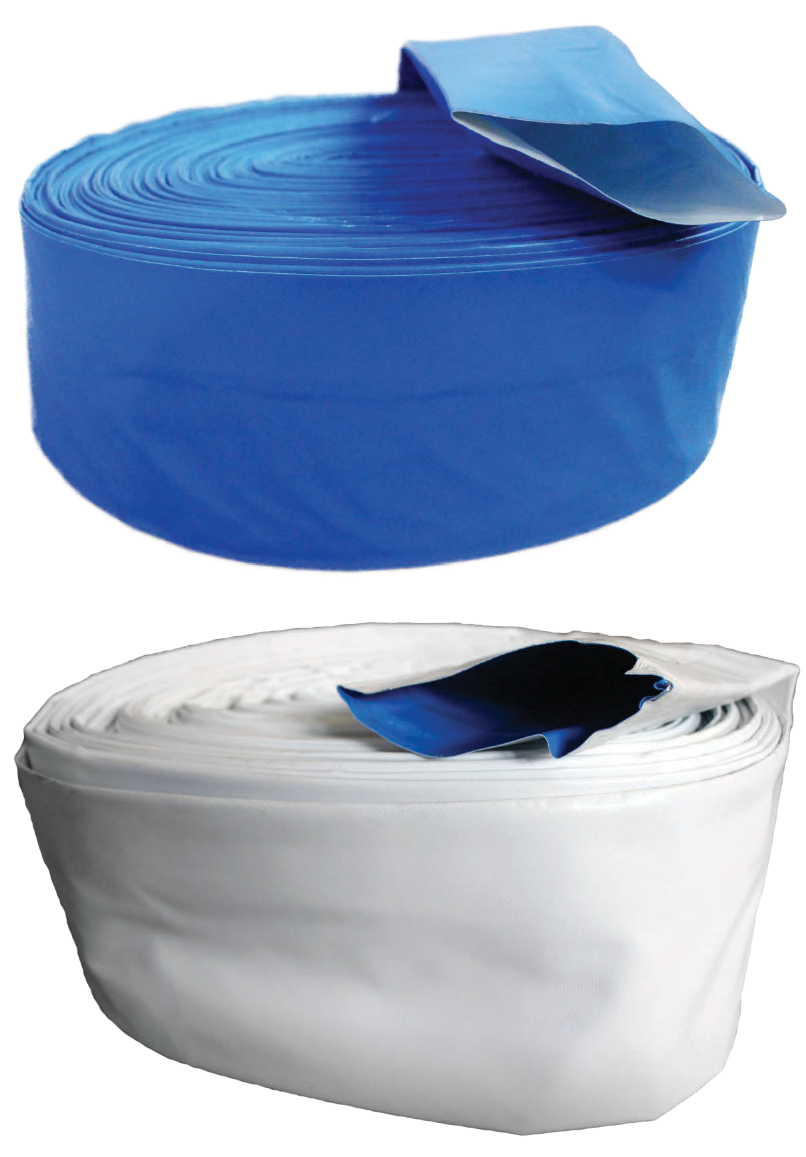

Blast Hole Liners

Product Specifications:
– Waterproof
– Durable
– Light Weight

BLAST HOLE LINERS

The most common sizes are:

BHL Size x LengthTo Suit Drill-hole
53mm x 50mtr 51mm
67mm x 50mtr 64mm
79mm x 50mtr 76mm
89mm x 50mtr 86mm
105mm x 50mtr 102mm
Mine

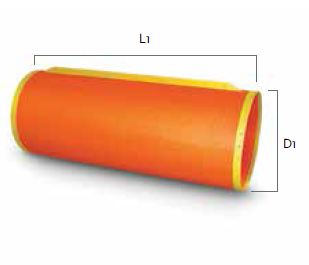

MINEFLAT

Based on field tests, Mineflat delivers more airflow for a given length of ducting due
to a lower leakage coefficient because of our patented stitch-weld process. Mineflat
is colour coded based on the diameter of the duct to easily identify sizing.

All sizes available in 5, 10 and 20m lengths with some also available in 50m. The joining
mechanism is the skirt connecting method consisting of eyelets and a skirt enabling
connection with Mineflex, hook and loop fasteners and even zippers. Discuss with your
Sales Representative for your joining needs.

D1 (mm)L1 (m)L1 (m)L1 (m)L1 (m)
305
5 10 20
355
5 10 20
406
5 10 20
457
5 10 20
508
5 10 20
572
5 10 20
610
5 10 20
762
5 10 20
810
5 10 20
910
5 10 20 50
1067
5 10 20 50
1220
5 10 20 50
1400 5 10 20 50
Ducting for Mines

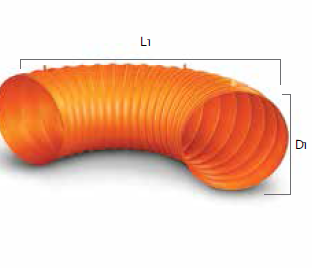

MINEFLEX

Mineflex typically is constructed with Minemaster fabric. As the name “flex” indicates,
this product has a wire spiral helix which provides flexibility and avoids kinking.
The joining mechanism is the skirt connecting method consisting of eyelets and
a skirt enabling connection with Mineflat. This product is available in all material
types described on page 2. Other diameters and lengths available upon request.

D1 Nominal I.D. mmD1 Nominal I.D. inchesL1 (m)
300
12
10
355
14
10
406
16
10
457
18
10
508
20
10
610
24
10
710
28
10
762
30
10
810
32
10
910
36
10
1067
42
10
1220
48
10
1400 56 10
Mineflat Ducting

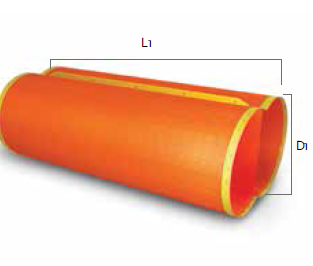

TWIN DUCT

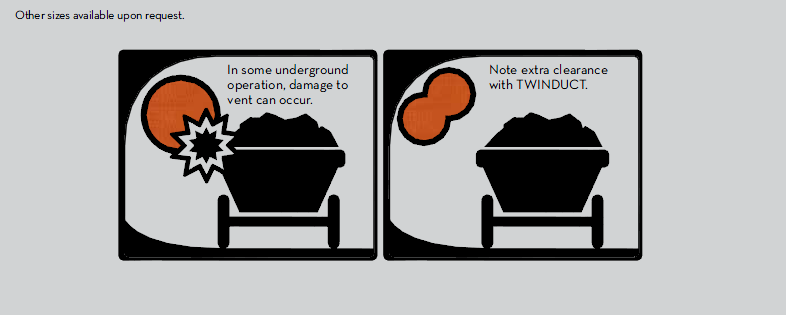

Twinduct is designed to be used in areas where damage is likely to occur on tight
areas of underground mining, especially where mine tunnel heights are limited.

Twinduct D1 (mm)Mineflat Equivalent (mm)L1 (m)L1 (m)L1 (m)Headspace saving with Twinduct (mm)
455
610
5 10 20 205
570
760
5 10 20 300
680
915
5 10 20 335
762/795
1067
5 10 20 405
910
1220
5 10 20 410
1045 1400 5 10 20 450
Vent Image - Plascorp
Mine

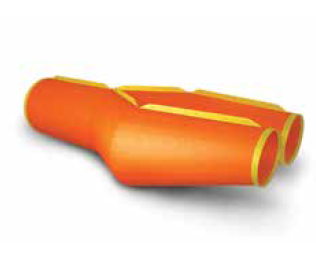

TWINDUCT TRANSITION / TROUSER LEG

The Twinduct Transition and Twinduct Trouser Legs (shown) convert a single Mineflat
duct into a Twinduct without losing airflow volume. Easily connects to existing Mineflat /
Mineflex and Twinduct. Selection is based on headspace and ventilation
line requirements.

Twinduct Equivalent (mm)Tubular Diameter (mm)
455
610 (24”)
570
760 (30”)
680
915 (36”)
762/795
1067 (42”)
910
1220 (48”)
1045 1400 (56”)
Ducting for Mines

TWIN DUCT REDUCER

The Twinduct Reducer changes the diameter of the twinduct from a larger to
smaller size.

D1 (mm)D2 (mm)L1 (m)
910 762 5
1045 910 5
Plascorp Image

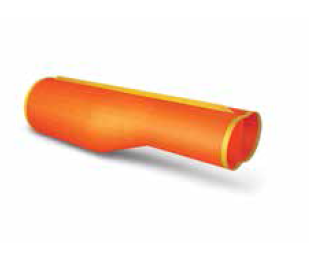

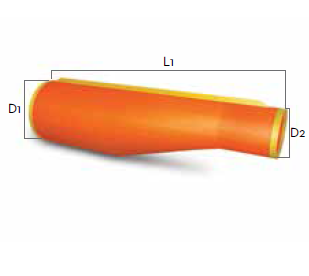

REDUCER

The Reducer changes the diameter of the single duct from a larger to smaller size.

D1 (mm)D2 (mm)L1 (m)
610
400
5
910
762
5
1067
762
5
1067
910
5
1220
1067
5
1300
1067
5
1400
1067
5
1400 1220 5
Mine

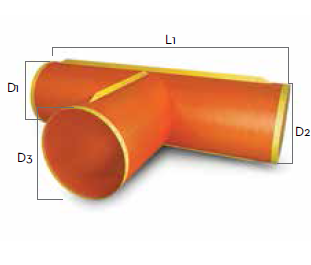

T Piece

Allows for changes in direction with the mine tunnel.

D1 (mm)D2 (mm)D3 (mm)L1 (m)
305
305
305
5
355
355
355
5
406
406
406
5
457
457
457
5
508
508
508
5
572
572
572
5
610
610
610
5
762
762
762
5
810
810
810
5
910
910
910
5
1067
1067
1067
5
1220
1220
1220
5
1400 1400 1400 5
Mine Piping

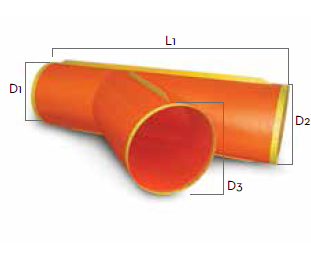

DUAL FIN BRANCH PIECE

Used when a side tunnel diverts off the main tunnel. The branch is at 45° to the main
vent. The double hanging eyelets or ‘DUAL FINS’, allow the branch piece to be installed
left or right, simply by inverting it.

D1 (mm)D2 (mm)D3 (mm)L1 (m)
305
305
305 5
355
355
355
5
406
406
406
5
457
457
457
5
508
508
508 5
572
572
572 5
610
610
610
5
762
762
762 5
810
810
810
5
910
910
910 5
1067
1067
1067 5
1220
1220
1220 5
1400 1400 1400 5
Mine

Y Piece

Y Pieces split the vent into 2 streams and are made with a 120°.

D1 (mm)D2 (mm)D3 (mm)L1 (m)
305
305
305 2.5
355
355
355
2.5
406
406
406
2.5
457
457
457
2.5
508
508
508 2.5
572
572
572 2.5
610
610
610
2.5
762
762
762 2.5
810
810
810
2.5
910
910
910 2.5
1067
1067
1067 2.5
1220
1220
1220 2.5
1400 1400 1400 2.5
Plascorp Image

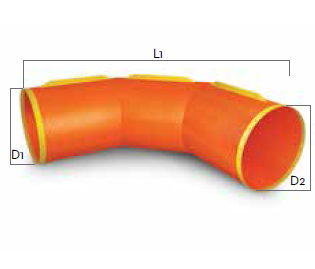

900 LONG RADIUS LOBSTER BACK

Long radius bend or Lobster Back allows a change in 900 direction. Lobster backs are
available in 3 pieces (as shown) or 5 pieces. It has double hanging eyelets or ‘DUAL
FINS’, which allow the part to be installed with a left or right turn. Mineflex can also be
used to cater for any angle direction change.

D1 (mm)D2 (mm)L1 (m)
305
305
5
355
355 5
406
406 5
457
457 5
508
508 5
572
572 5
610
610 5
762
762
5
810
810 5
910
910 5
1067
1067 5
1220
1220
5
1400 1400 5
Mine Piping

FAN ADAPTOR

Long radius bend or Lobster Back allows a change in 900 direction. Lobster backs are
available in 3 pieces (as shown) or 5 pieces. It has double hanging eyelets or ‘DUAL
FINS’, which allow the part to be installed with a left or right turn. Mineflex can also be
used to cater for any angle direction change.

D1 (mm)L1 (mm)
610
500
710
582
762
625
810
664
910
746
1067
875
1220
1000
1400 1148

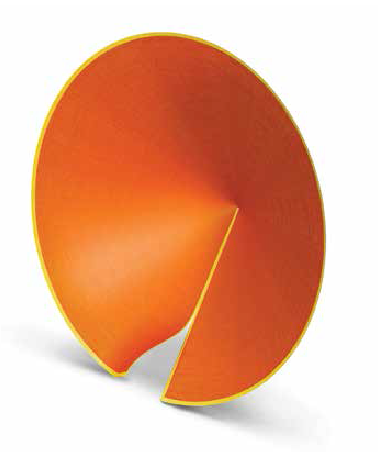

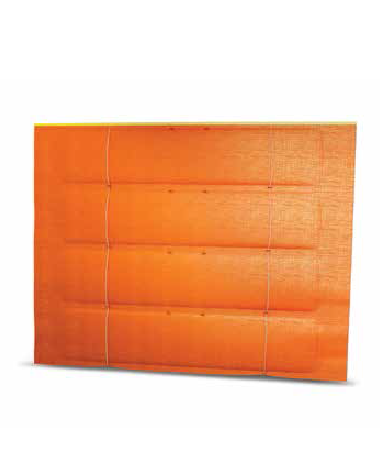

NIXON FLAPS / PARACHUTES

Nixon flaps and Parachutes block off access to closed sections of the tunnel/mine. Specify dimensions when ordering.
Supplied with

Vent Image

Supplied with pulleys and ropes.

Industrial Vent

Available with zippers or without.

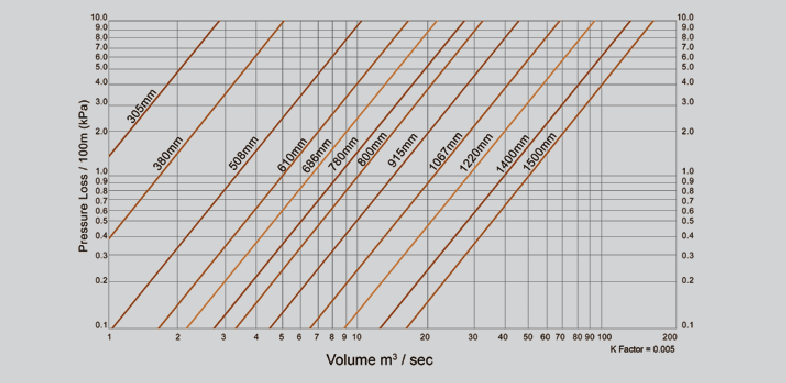

MINEMASTER VENTILATION DUCTING “FLOW RESISTANCE” CHART AVERAGE THEORETICAL OPERATION

Vent Image

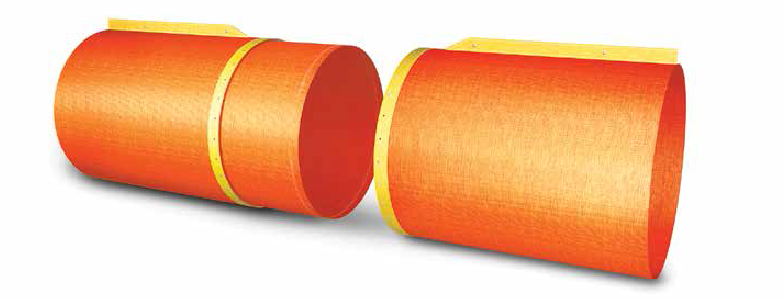

JOINING MECHANISM

<pclass=”mul_col1>The joining mechanism consists of eyelets and a skirt sewn into both ends of the duct as detailed below.
Skirt acts as an internal seal to minimise air loss through the joint.

Ducting Joining Mechanism

HANGING CLIPS

<pclass=”mul_col1>Used to hang Mineflat/Mineflex to the knocker line.

Vent Image
